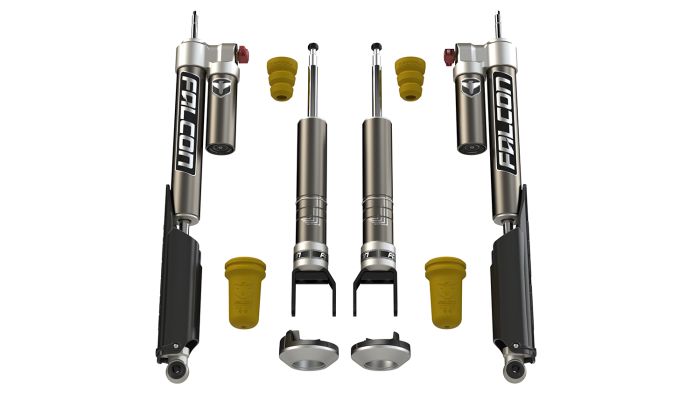

2019+ Ram 1500/Rebel: Falcon 2.25"/1.25" Sport Tow/Haul Shock Leveling System
Description
Falcon Shock Leveling Systems provide multiple ride heights to level the front end and/or compensate for the additional weight of a winch or other accessories.
High-Value Performance" is the driving force behind our vehicle-specific dampers for Jeeps trucks and SUVs. We don-t re-valve existing shocks (like other companies); we engineer complete shock absorber systems that improve the overall performance of your truck or SUV both on and off road and while towing. Falcon Performance Shocks by TeraFlex.
Sport Tow/Haul Shocks:
- Sport Tow/Haul Shocks increase stability and control as well as improve ride quality and comfort both on and off-road in a compact and affordable package
- Front monotube shocks w/ optimized tuning for on- and off-road driving
- Rear adjustable piggyback shocks w/ 3-position Fast Adjust Knob for large damping adjustments
- Rear settings include: Sport Moderate Tow/Haul Heavy Tow/Haul
- ideal for daily driving off-road excursions and tow/haul duties as well as the serious enthusiast wanting a consistent controlled feel through all driving conditions
Front Leveling Shocks:
- Front leveling shocks w/ multiple snap ring grooves provide a range of height adjustment
Rear Piggyback Shocks:
- Piggyback design increases oil and gas capacity for reduced heat
- Flows 6x more oil than restrictive reservoir hose designs
- Eliminates common leakage issues found in banjo and swivel fittings
• Sport Leveling Monotube Shocks (0?"2.25" Lift)
• Microcellular Progressive Bump Stops
• Billet Coil Spring Carriers
• Injection molded squeak-free Spring Isolators
• All necessary hardware
Rear Components:
• Adjustable Sport Tow/Haul Piggyback Shocks (0" Lift)
• Microcellular Progressive Bump Stops
• Roost Guards
• All necessary hardware
Have a certified mechanic do it for you!
Truck/SUV Performance Shocks: • Vehicle-specific shock absorbers • Race-inspired performance for increased vehicle stability • Improved dynamic roll control and low-speed damping • Dramatic improvement in on-road comfort and off-road performance • Optimized fitment for unobstructed suspension travel and articulation • 2.3" shock body provides optimal performance • 6061-T6 aluminum alloy shock body resists Impact to protect internal components • Smooth honed internal shock body surface for long-term performance • 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling • Large shaft diameter provides wide range of adjustment on adjustable shocks • Hard anodized 6061-T6 aluminum alloy billet piston • 1-piece Teflon bronze piston wear band w/ O-ring • VOD (Volume Optimized Damping) features a digressive linear piston • VOD reduces shock bottoming at full compression or over uneven terrain • OGS (Oil/Gas Separator) prevents cavitation • ZRT (Zone Rate Tuning) assists factory spring in the Extension Zone and Compression Zone during aggressive driving ?" does NOT affect Drive Zone • Internal Negative-Rate Coil Spring eliminates top out clunk and shock stress during Extension Zone; softens tire landing on impact • Vehicle tuned microcellular Progressive Bump Stops reduce harsh bottom outs (when applicable) • High-quality spherical bushings (when applicable) • Zerk fittings to lube bushing (when applicable) • Red Line synthetic oil w/ a high Viscosity Index for consistent performance across all temperatures • Synthetic formula also contains special anti-wear and lubricity agents • 1,000-hour salt spray corrosion resistance test on all hardware • Serviceable and rebuildable (factory serviced) • Designed, engineered, and assembled in-house from domestic and globally sourced components • Patented design • 3-year warranty
